ONETECH model No. ON799 and SOTUE model No. SE888 series industrial tunnel metal detector heads as follows:

                         ONETECH ON799 industrial tunnel conveyor type needle detector, tunnel metal detector head

ON799 industrial tunnel conveyor type needle detector series products adopt the international advanced technology and micro-chip digital signal processing technology, and adopt know-how of high sensitivity and intelligentized location show and counting system. It has very strong anti-interference capability and suits more complex environment use. ON799 detector products were exported to India, Brazil, South Africa, Italy, Mexico, Vietnam, Australia, North Korea and Turkey to local clients' industrial uses.

Technical data:
Detection tunnel width: 350mm, 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm, 1100mm, 1300mm, 1500mm, 1600mm, 1800mm, 2100mm for selection.
Detection tunnel height                                                     Tunnel detection sensitivity
            100mm                                                                           Feφ≥0.8mm
            120mm                                                                           Feφ≥0.8mm
            150mm                                                                           Feφ≥1.0mm
            200mm                                                                           Feφ≥1.2mm
            250mm                                                                           Feφ≥1.5mm
            300mm                                                                           Feφ≥1.5 ~ 2.0mm
            350mm                                                                           Feφ≥2.0 ~ 2.5mm
            500mm                                                                           Feφ≥3.0 ~ 3.5mm
            600mm                                                                           Feφ≥3.5 ~ 4.0mm
            700mm                                                                           Feφ≥5.0mm
            800mm                                                                           Feφ≥6.0mm
            900mm                                                                           Feφ≥7.0mm
           1000mm                                                                          Feφ≥8.0mm
           1600mm                                                                          Feφ≥12mm

Detection adjustment :automatical adjustment. Alarm method: light show position. Power supply:  AC110 ~ 240V, 50 ~ 60Hz. Weight: Appr. 100 ~ 170kg.

Application:
It can inspect shoes, hats, non-woven products, high elastic cotton clothing, paper, plastic plate, inspect sewing products, toys, food products, chemical products, pharmaceutical products, rubber products, stones, cement, coal, mining materials and other detection items,
it can be installed directly in a production line for inspection and can also detect pharmaceutical products and food packaged by aluminum foil for safety check.

Feature:
1. ON799 LCD control panel gives you a good operation environment, real time level display, automatic counter function. Automatic checking function.

2. When sensors detect a broken needle or a ferrous or magnetic material, an alarm signal can be given out.

3. Designed for universal AC power supply. Optional function: printing reports with a printer.

4. When the broken needle or other ferrous or magnetic metal is found, the machine gives out an alarm, and at the same time, the conveyor belt stops or returns automatically. If its alarm is given out normally, its probe will give out a light to indicate a object place where the broken needle or other ferrous metal or magnetic metal is. Twelve grades sensitivity adjustment.

Our ON799 detector head can control your motor on the production line for startup and stop, when the detector detects metal object on the production line conveyor belt, it will warn, an outside LED light of the detector head on the conveyor belt shows the general location of the metal, it has the alarm display of multiple LED lights, when a LED light is bright, it can tell you the present location of metal object on the conveyor belt, thus, a worker is easy to clear metals. Adopt a most advanced digital technology to produce it with an exclusive design, it owns alarm position show lights ( as shown above: Alarm Position Light show photo ).

Technical standards:
1. Conform to EN 60950-1: 2006+A11: 2009 electrical product safety international standard.  Anti-jamming conforms to EN 50082-1 international standard.
2. Conform to EN 61000-3-2:2006+A2:2009 and EN 61000-3-3: 2008 product safety international standards.
3. Conform to EN61000-6-1:2007 product immunity international standard. Radiation conforms to EN61000-6-3:2007 product emission international standard.

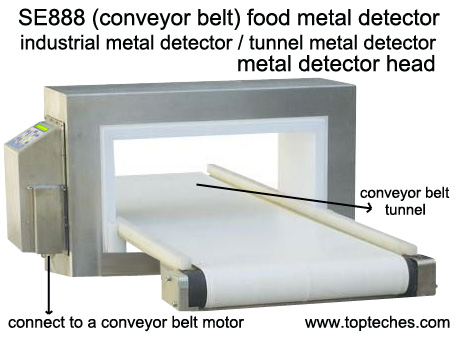

SOTUE SE888 industrial conveyor type tunnel metal detector / metal detector head (conveyor belt type mining / food / chemical / paper / cement / foodstuff / clay / timber / coal metal detector)

(Height & width of detection tunnel size can be custom-made, the highest detection sensitivity: sphere diameter Feφ≥0.6 ~  0.8mm)

Application:
SOTUE model No. SE888 series industrial tunnel metal detector heads are widely being used in pharmaceutical industry, food industry, toy industry, plastic industry, textile industry, cement industry, mining industry and so on. Stainless steel Frame. The industrial metal detector heads can be custom-made.

Tunnel detection width: 300mm, 350mm, 400mm, 500mm,  600mm, 700mm, 800mm, 900mm, 1000mm, 1100mm, 1300mm for selection

Tunnel height                                                       Tunnel detection Sensitivity
    100mm                                                                   Feφ≥0.6 ~ 0.8mm
    120mm                                                                   Feφ≥0.8mm
    150mm                                                                   Feφ≥0.8mm
    200mm                                                                   Feφ≥0.8 ~ 1.0mm
    250mm                                                                   Feφ≥1.0 ~ 1.2mm
    300mm                                                                   Feφ≥1.2 ~ 1.5mm
    350mm                                                                   Feφ≥1.5mm
    500mm                                                                   Feφ≥2.5mm
    600mm                                                                   Feφ≥3.0mm
    700mm                                                                   Feφ≥3.5mm
    800mm                                                                   Feφ≥4.0mm



Power supply:   AC 220V (±10%) or 380V (±10%),  56-60Hz.

Features:
1. It has extremely high detection sensitivity, anti-interference ability and excellent performance. It is very suitable for the detection of high demand food industry and other high demand product industries.

2. It is mainly used for test & inspection of food, toys, plastics, textiles, papermaking, cement, mining, medicine & other industries.
It can be used to detect the broken needles, wire, copper, lead, aluminum, tin, stainless steel and other metals which are lost or mixed into raw materials or products. Its detection accuracy exceeds the corresponding detecting guideline stated by the HACCP system, and it is manufactured according to the HACCP system.

3. It can detect non-ferrous metals and iron impurities, has the high detection sensitivity for ferrous and non-ferrous metal detection. It is very easy to operate. About food, it can detect wet or dry or sugar food and the packaged food. Attention: Food includes bread, ice cream, vegetable, moon cake, meat, chocolate and so on.

4. SE888 metal detector can control your motor on the production line for startup and stop, when a metal is found, this device gives out an alarm, at the same time, this production conveyor line automatically stops or pauses to make you remove alarm objects or make your rejection system work, its operation is extremely easy, flexible, reliable. It can be directly installed into a production line for use to carry out automatic inspection products.

5. It uses Digital processing detection technology and digital LCD screen display. Its Password setting is provided for startup, thus it is convenient for your normal management. It has automatic setting (self - learning) function for different products.

Technical standards:
1. Conform to EN 60950-1: 2006+A11: 2009 electrical product safety international standard. Anti-jamming conforms to EN 50082-1 international standard.
2. Conform to EN 61000-3-2:2006+A2:2009 and EN 61000-3-3: 2008 product safety international standards.
3. Conform to EN61000-6-1:2007 product immunity international standard. Radiation conforms to EN61000-6-3:2007 product emission international standard.
