SOTUE HNR929D hand-held professional nuclear radiation detector and HNR911D nuclear radiation detector as follows:

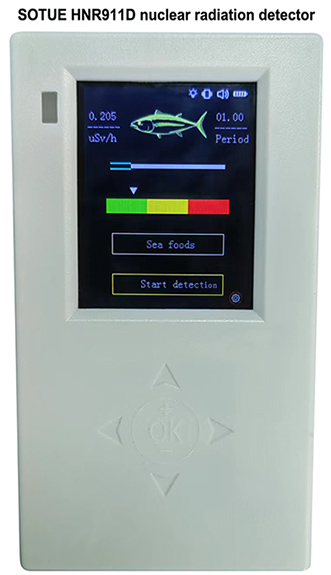

SOTUE HNR911D hand-held nuclear radiation detector
Introduction:
It is a high-precision nuclear pollution detector of intelligent household use and used to ensure the health of a person's own life and diet. It can detect aquatic products, seafoods, grains, fruits, vegetables and liquids. It has stable and reliable performances. It is non-contact detection.
Can detect products as follows:
1. Seafoods: Fish, shrimp and other aquatic products.
2. Cereals: rice, bread, French fries, etc.
3. Fruits and vegetables: fruits, vegetables, etc.
4. Liquid category: purified water, coffee, beverages, etc.
5. Other tests: Non categories above.
The display detection results indicate that the triangle placed in the green area is safe and pollution-free, the yellow area is a caution for minor pollution, and the red area shows a dangerous and contaminated place.
Technical data:
Detection type: X radiation, γ (Gamma ray) radiation and hard β radiation.
Range (dose rate): 0.01 μSv/h ~ 1000 μSv/h.
Measurement accuracy:<± 7%.
Accumulated dose: 0.001 μ Sv-9999.999Sv.
Mini. sensitivity response: 0.01 CPS.
Power supply: Lithium battery capacity 2000 mAh.
Interface: Type-C USB.
sizes: 121mm (L) x 67mm (W) x 25mm (H).
Weight: 268g.
Display unit: uSv/h.
Working temperature range: - 20 ℃ ~ +60 ℃.
Power Supply: 110 ~ 220V AC (±10%).
Data storage: max. 1500 pieces, storage is full, is with the function of automatic cyclic coverage data.
Detection time: 30 seconds to 3 minutes (the detection time change depends on the intensity of nuclear radiation, higher intensity of radiation leading to shorter detection time).
Optional languages: Chinese, English, Japanese and Korean.
Technical standards:
1. Conform to EN60950-1:2006+A12:2011 product safety international standard.
2. Conform to EN60601-1-2:2015/A1:2021 international safety standard.
3. Conform to EN60601-1:2006+A12:2014 international safety standard.
4. Conform to EN55011:2009+A1:2010 international safety standard.
5. European CE and EMC international safety standard certificates.
SOTUE HNR929D hand-held professional nuclear radiation detector
Introduction:
HNR929D nuclear radiation detector is a professional and intelligent multi-functional handheld nuclear radiation detector that can detect and measure α radiation, β radiation, γ (Gamma ray) radiation and X radiations, and its operation is simple and easy, it can display dose rate, cumulative dose, environmental temperature, radiation risk, radiation peak and real-time clock.
It can detect aquatic products, seafoods, grains, fruits, vegetables and liquids. It is non-contact detection.
Application:
HNR929D detector has high accuracy and stable and reliable performance. It can monitor and test α, β, γ and X radioactive contaminations of the surfaces of workplaces, laboratory workbenches, floors, tiles, walls, building materials, food, seafoods, clothing, jewelry, home decoration, porcelain tablewares and glass cups etc.
HNR929D detector can monitor and detect radiation pollutions in the hospitals' radiation rooms, nuclear power plants, surrounding air and water quality, it can also detect radiation pollutions from water radium pollution, radon radiation and nuclear radiation in the environment.
Technical data:
Display: 2.4 inch true color touch screen, easy operatation.
Measurement type: α radiation, β radiation, γ (Gamma ray) radiation and X radiation.
Measurement accuracy: ± 5% ~ ± 10%.
Detection time: 10 seconds to 30 seconds.
Temperature detection: -25 °C ~ +110 °C.
X-ray energy range: 32keV~3Mev.
γ Energy range: 10keV~3Mev.
Measurement method: real-time, average, maximum, cumulative.
Radiation dose rate (protection): 0.01 µsv/h ~ 10mSv/h, i.e. 0.01 µ sv/h ~ 10000 µ sv/h.
Radiation dose rate (environment): 1nGy/h ~ 1000 µ Gy/h.
Dose rate range: 0.01 µSv/h ~ 10mSv/h.
Pulse dose rate: 0 ~ 850,000 CPM, i.e. 0 ~ 14,000 CPS.
Accumulated dose: 0.001 μSv ~ 999.999Sv.
Sensitivity: 3,500 CPM / mR/h (for Cs-137).
Data storage: 15,000 pieces of dose rates with timestamp, dynamically stored for 15 ~ 30 days, automatically overwriting old data. Data can be exported to generate Excel format.
Data query: Supports table and curve modes
Display units: CPS, CPM, nGy/h, uGy/h, μ Sv/h, mSv/h, mSv, μ Sv.
Wireless communication interface: Bluetooth, 4G, Beidou positioning
Battery: 3,000 mAh rechargeable lithium battery.
Power Supply: 110 ~ 220V AC (±10%).
Battery work time: > 96 hours.
Size: 151 x 81 x 30 mm.
Weight: 300 grams
Working temperature range: -20 ℃ ~ 55 ℃.
Alarm mode: sound, flashing light, vibration (any combination setting).
Alarm value: The alarm value can be set by oneself.
Language: Chinese and English.
Technical standards:
1. Conform to EN60950-1:2006+A12:2011 product safety international standard.
2. Conform to EN60601-1-2:2015/A1:2021 international safety standard.
3. Conform to EN60601-1:2006+A12:2014 international safety standard.
4. Conform to EN55011:2009+A1:2010 international safety standard.
5. European CE and EMC international safety standard certificates. |
