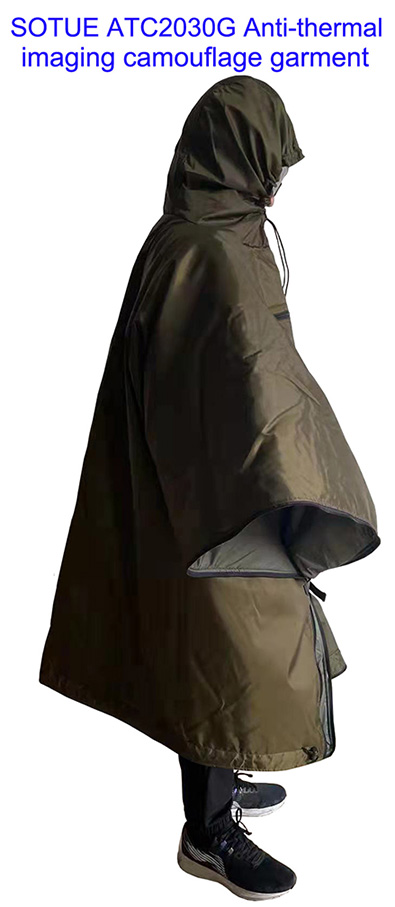

SOTUE ATC2030G military Anti-thermal imaging camouflage garment

Application:
SOTUE ATC2030G Anti-thermal imaging concealment garment is a kind of rainproof military Anti-thermal imaging camouflage clothing and widely used in war for camouflage to protect soldiers, VIP persons and leaders to safety.

ATC2030G camouflage concealment garment can block thermal imaging cameras to irradiate its inside persons. Normally now in combat the thermal imaging cameras are used to find enemies because thermal imaging cameras can be installed on UAV, drone, sniper rifle etc. to use or be used in hand by someone independently.

Environmental conditions:
Temperature: 25℃.
Humidity: 65%.

Test equipment:

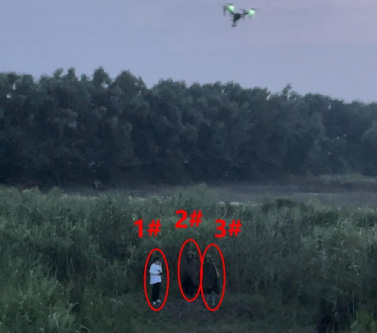

Observation type infrared thermal imaging camera (imager), its resolution: 640 × 512. It was installed on a UAV flight system to test ATC2030G series rainproof military Anti-thermal imaging camouflage garments.

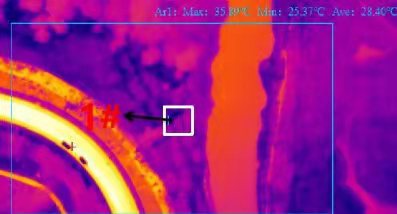

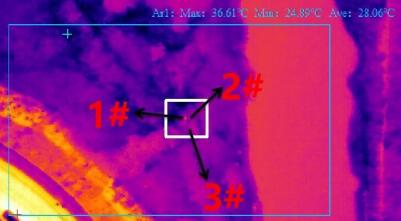

100 metres far, thermal imaging image as follow:

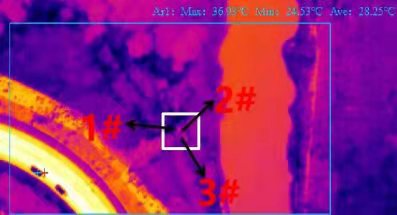

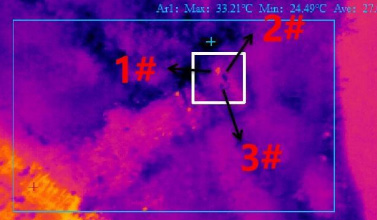

200 metres far, thermal imaging image as follow:

When 2# person and 3# person who are wearing ATC2030G garments are on the position of 200 metres, 2# person and 3# person appear as dark spots, they can be well integrated with the background.

300 metres far, thermal imaging image as follow:

When 2# person and 3# person who are wearing ATC2030G garments are on the position of 300 metres, 2# person and 3# person are well integrated into the background.

400 metres far, thermal imaging image as follow:

When 2# person and 3# person who are wearing ATC2030G garments are on the position of 400 metres, 2# person and 3# person can't be found.

When a person stands up, three standard sizes of anti-thermal imaging camouflage garment are as follows for option:

1. Clothing size: Width 200 cm (optional: 170 cm, 180 cm or 190 cm) x Height 165 cm (including a head hat).

2. Clothing size: Width 200 cm (optional: 170 cm, 180 cm or 190 cm) x Height 175 cm (including a head hat).

3. Clothing size: Width 200 cm (optional: 170 cm, 180 cm or 190 cm) x Height 185 cm (including a head hat).

For example:
1. The height of the garment is 135 cm from the shoulder to human crus (which is a part of the height of the garment), and the height of the hat is 30 cm (which is also a part of the height of the garment).
When a person's hands are stretched out into a straight line, the length is 200 cm (optional: 170 cm, 180 cm or 190 cm).

Clothing size: Width 200 cm (optional: 170 cm, 180 cm or 190 cm) x Height 165 (135 + 30) cm (including a hat).

The garment color and size can be customized according to a client's requirement.

Testing standard:
GB/T 3923.1-2003 (ISO 13934-1:1999)
Breaking strength (BS): 1396 N (Warp direction).

Testing standard:
GB/T 4744-2013 (ISO 811:1981)
Waterproof performance: 40 Kpa.

Feature:
This camouflage clothing fabric has high strength, combines anti-thermal imaging camouflage and rainproof functions. Its waterproof performance can reach the rainproof level of tent fabric.

Technical standard:
Conform to European Union (EU) REACH Regulation (EC) No 1907 / 2006.

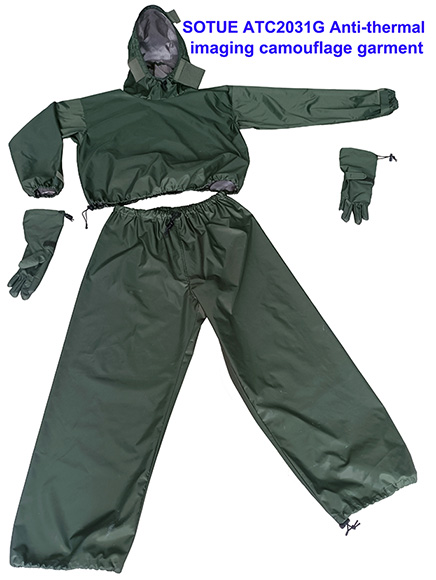

                     SOTUE ATC2031G military Anti-thermal imaging camouflage garment

Application:
ATC2031G Anti-thermal imaging concealment garment is a kind of rainproof military Anti-thermal imaging concealment camouflage clothing and widely used in war for camouflage to protect soldiers, VIP persons and leaders to safety.

ATC2031G camouflage concealment garment can block thermal imaging cameras to irradiate its inside person. Normally now in combat the thermal imaging cameras are used to find enemies because thermal imaging cameras can be installed on UAV, drone, sniper rifle etc. to use or be used in hand by someone independently.

Environmental conditions:
Temperature: 25℃.
Humidity: 65%.

Test equipment:
Observation type infrared thermal imaging camera (imager), its resolution: 640 × 512. It was installed on a UAV flight system to test ATC2031G series rainproof military Anti-thermal imaging camouflage concealment garments.

Test result:
1. When a tested person who is wearing ATC2031G garment is on the position of 40 metres, he or she appears as a dark spot, he or she can be well integrated with the background.

2. When a tested person who is wearing ATC2031G garment is on the position of 45 metres, at this time there is no target in the display screen of thermal imaging imager which is working normally, this person can't be found.

When a person stands up, four standard sizes of anti-thermal imaging camouflage concealment garment are as follows for option:

1. Clothing size (No. 170): it is suitable for a person of 170 cm height to wear including a hat.

2. Clothing size (No. 180): it is suitable for a person of 180 cm height to wear including a hat.

3. Clothing size (No. 190): it is suitable for a person of 190 cm height to wear including a hat.

4. Clothing size (No. 195):  it is suitable for a person of 195 cm height to wear including a hat.

The garment color and size can be customized according to a client's requirement.

Testing standard:
GB/T 3923.1-2003 (ISO 13934-1:1999)
Breaking strength (BS): 1396 N (Warp direction).

Testing standard:
GB/T 4744-2013 (ISO 811:1981)
Waterproof performance: 40 Kpa.

Feature:
This camouflage clothing fabric has high strength, combines anti-thermal imaging camouflage and rainproof functions. Its waterproof performance can reach the rainproof level of tent fabric.

Technical standard:
Conform to European Union (EU) REACH Regulation (EC) No 1907 / 2006.

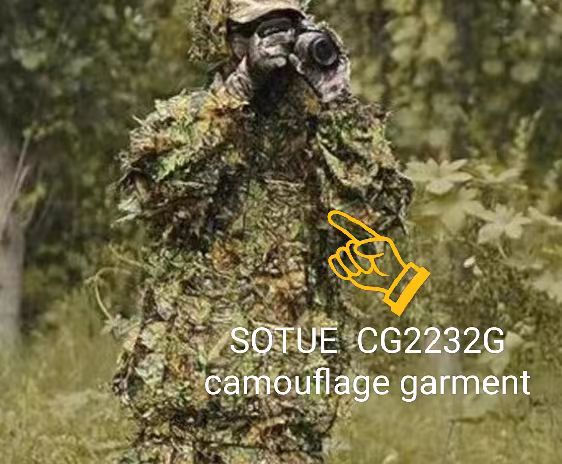

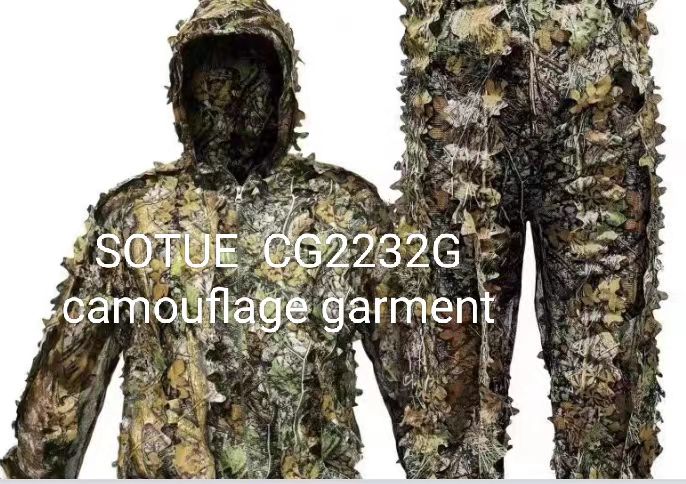

                       SOTUE CG2232G camouflage concealment garment

Function:
1. Visible light stealth: Its color can match various background colors.
2. Near-infrared stealth: The near-infrared spectral reflectance of camouflage (or spot) is not less than 0.5.

When a person stands up, 4 standard sizes of camouflage concealment garment are as follows for option:

1. Clothing size (165 cm height): it is suitable for a person of 170 cm height to wear including a hat. (No. CG170).

2. Clothing size (170 cm height): it is suitable for a person of 175 cm height to wear including a hat. (No. CG175).

3. Clothing size (175 cm height): it is suitable for a person of 180 cm height to wear including a hat. (No. CG180).

4. Clothing size (185 cm height): it is suitable for a person of 190 cm height to wear including a hat. (No. CG190).

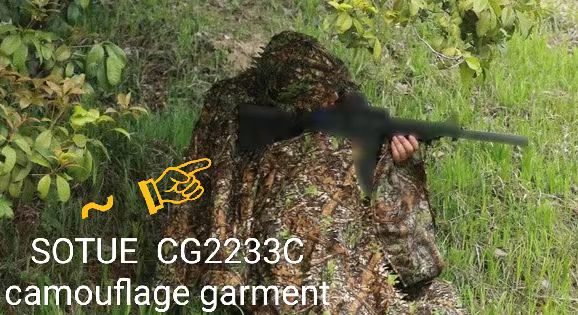

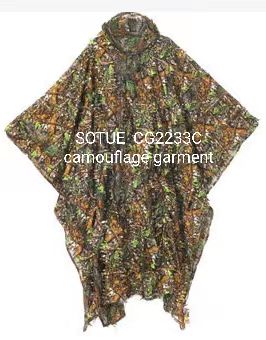

                       SOTUE CG2233C camouflage concealment garment

Function:
1. Visible light stealth: Its color can match various background colors.
2. Near-infrared stealth: The near-infrared spectral reflectance of camouflage (or spot) is not less than 0.5.

When a person stands up, 4 standard sizes of camouflage concealment garment are as follows for option:

1. Clothing size (165 cm height): it is suitable for a person of 170 cm height to wear including a hat. (No. 170C).

2. Clothing size (170 cm height): it is suitable for a person of 175 cm height to wear including a hat. (No. 175C).

3. Clothing size (175 cm height): it is suitable for a person of 180 cm height to wear including a hat. (No. 180C).

4. Clothing size (185 cm height): it is suitable for a person of 190 cm height to wear including a hat. (No. 190C).

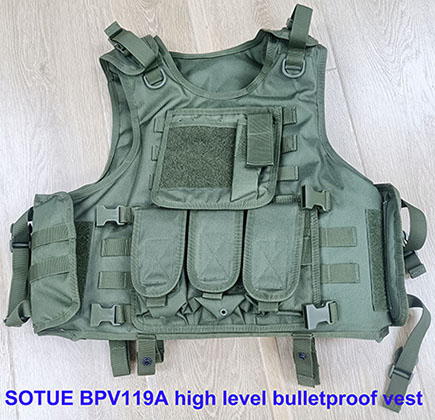

                SOTUE BPV119A tactical bulletproof vest

Product composition: tactical vest, soft bulletproof layer, bulletproof insert plate.
Feature:
1. The tactical vest has flame retardant, drainage, water repellent and
wear-resistant functions. The tactical vest has the cushioning, heat dissipation and breathable structure.
2. The tactical vest has a drag and drop function that meets the emergency needs of the battlefield, and can meet the emergency drag and drop requirements for the treatment of injured personnel.
3. The tactical vest has a quick release function (steel wire rope).

Function:
Bulletproof performance: effectively prevents 7.62mm armor penetration bullet (Strong charge projectile) at a distance of 15 meters with a 3-shot bullet speed of 878 ± 10m/s. The instantaneous concave deformation of each shot is ≤ 35.0 mm. It was tested by the military special equipment company.

The bulletproof insert plate is mainly used to prevent the penetration of 7.62mm armor Incendiary bullet projectile, effectively protect the protected parts of the human body, used to protect personnel who is performing combat tasks, is a single soldier in combat state to carry the necessary equipment and combine it with a soft bulletproof layer to use, thus it can enhance the bulletproof effect.

Bulletproof insert plate
Technical performance data:
Weight: 3 ± 0.05kg.
Thickness: ≤ 25mm.
Surface density: ≤ 37.5kg/㎡.
Size: 260 mm (width) x 325 mm (height).

Total weight: About 8 kgs.

Applicable guns and bullets, above, it effectively prevents 7.62mm bullets fired from the 7.62mm sniper rifle, and it can also prevent type 53 armor piercing incendiary and 79 type micro impact firing 7.62mm lead core bullets.
Anti-puncture performance: GA 68-2019 Class A, defence D1 knife tool ≥ 24J.

Welcome to take a sample for test, please contact us.
