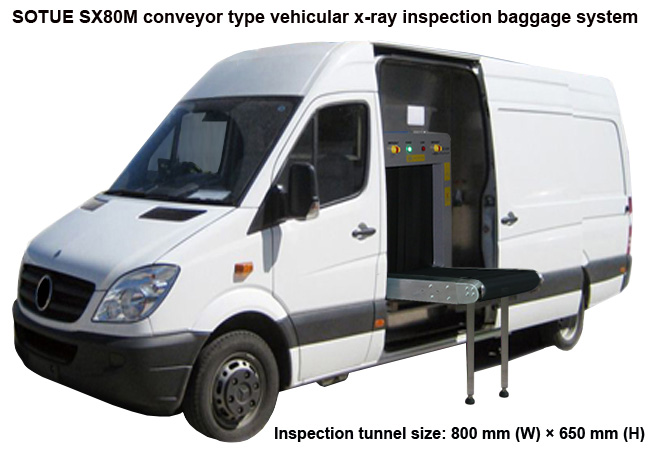

SX80M x-ray inspection baggage & cargo system, conveyor type and vehicular type as follows:

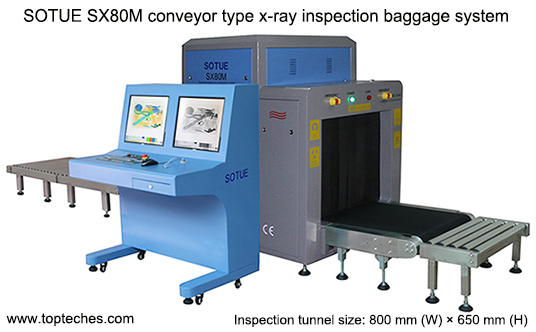

                          SX80M conveyor type x-ray screening inspection baggage & parcel system

Application:
SOTUE SX80M conveyor type x-ray inspection baggage & parcel system is used for explosives and suspicious dangerous goods inspection, it can be installed in airports, bus and train stations and so on for inspection goods, widely used in airports, bus & train stations, troops, public security, police, customs, postal parcel inspection and other security departments for security checks, etc.. Compliance with international safety product standards.

SX80M products have been exported to Brazil, Nigeria, Spain, Nepal, Iraq, Vietnam, Congo, Kenya, Russia, Thailand, India, South Africa, Italy and Turkey for local clients' uses. Over the years, we have provided design and OEM production for some customers in Japan, the United States and Europe.

Technical data:
Inspection tunnel size: 800 mm (W) × 650 mm (H). Conveyor speed: 0.22 m / s. Conveyor maximum load: 210 Kg. Film safety: for ISO 1600. Wire resolution: Φ 0.1 mm copper wire, Φ 0.1 mm other metal wire, 38 AWG. Noise: < 62 DB. Relative humidity: +10 to 95% non-condensing. Storage temperature: -20 ºC to 60 ºC. Operating temperature: 0 ºC to 45 ºC. Power consumption: 800 W (Max.). Power supply: 110V ~ 220 V (±10%), 50±3Hz. Penetration steel capacity: 34 mm steel plate. Optional: Input conveying length: 1000 mm; exit / output conveying length: 2500 mm.

Feature:
1. Use the standards as references, when the machine inspects the goods and finds that there are differences, then it will give out     a sound and light alert. Two standard 19" monitors and one monitor console.
2. Optional: Network interface, it can connect local area network and support multi-terminal inspection baggage simultaneously.
3. Safer ray: x-ray under automatic control to avoid the leakage. 4. Turn off or turn on by a key control, its operation is very simple.
5. Image function: can clearly observe and enlarge images. Threat Image Projection (TIP) / display: such as guns, knives, bullets, bombs, pistols and so on. Work status display. It is a most widely used system for Aviation Checkpoint and provides outstanding threat detection. Density Threshold Alert (DTA) security. Optional: Network monitoring. Language version: English or French.
6. Automatic checking and recovery function. Date and time display. Luggage count. Emergency stop.

X-ray generator:
Orientation: vertically upward. Tube current: 0.5 ~ 1.0 mA ( adjustable ).  Anode voltage: 140 ~ 160 KV ( optional or adjustable ). Angle: 80 degrees. Generator Cooling / Working periods: sealed oil bath with forced air of 100%. Dual generator, dual view. High penetration power to all metals. Optional: SX80M dual view system.

Image performance system:
X-ray sensor: L type photo-diode array detector,16 Bit. High resolution two 19” display monitors. Colour quality: 24 Bit real colours. Edge enhancement: object contour edge is more distinct and super image enhancement:its image detail is more distinct. Enlarging: function of enlargement image, high penetration strength display:increase brightness of dark areas in the image to display an object. Low penetration strength display:increase the contrast to display it distinctly. Brightening / dimming: increase brightness of image / decrease brightness of image. Image recurrence: display previous twenty images and process any one of them. Image restoration: restore an image to initial status at the time of stopping the conveyor. Image storing: real time to store any image and process it in operation status.

Zoom: Image enlargement to 32 times, optional: 64 times. Standard image storage: 50,000 images, optional: 100,000 images. Installation standard hard disk: 500 GB. Display memory capacity: 2.0 GB. Contrast sensitivity: Min. 24 levels. Image Display: Min. 1280 x 1024 bits / pixel, Min. 4096 gray levels. Intel Processor CPU, optional CPU: ARM Cortex A9.
