Optional: 1. SOTUE TIC30B military thermal imaging video surveillance system, real-time display: Detection vehicle distance is 8.8 ~ 9.02Km; On sea for a ship of medium size or up, detection ship distance is 30Km. Optional: detection vehicle distance: 18.03Km
2. SOTUE TIC50A military thermal imaging video surveillance system, real-time display: Detection vehicle distance is 15 ~ 18Km. On sea for a ship of medium size or up, detection ship distance is up to 50Km.
TIC116S vehicular military thermal imaging surveillance system, RD2000C thermal imaging aircraft pod, TIC189B thermal imaging binoculars, TIA818A / TIA816A military thermal imaging aim telescope and TM39B hunting aim telescope as follows:

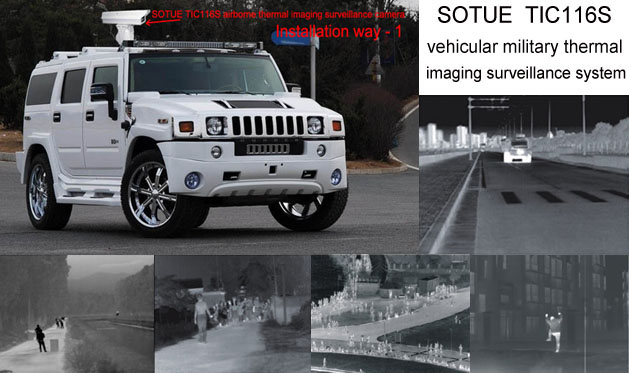

SOTUE TIC116S vehicular military thermal imaging video surveillance system
TIC116S surveillance system is widely used in tracing, search and surveillance security checks under different weather conditions, it includes detecting hidden dangerous places, rescue, suppress smuggling, search, fire protection, military and security protection, president or VIP convoy car security protection use, etc. TIC116S system products have been exported to Nigeria, Congo, Malaysia, Brazil, South Africa, Iraq, Iran, India, Syria, Libya, Mexico, Thailand and so on for the local customers' use. TIC116S system is very easy and simple to be installed on a car or other any places for use, its operation is very simple, its display image is very good.
Features:
1. Real-time display: a pedestrian detection distance for 1300 ~ 1500 meters and a car detection distance for 1800 ~ 2000 meters. Optional: Use optical field of view ( 3x optical zoom ), to meet detection and identify different requirements. Real-time display: a pedestrian detection distance for 3000 ~ 3200 meters, a vehicle detection distance for 5000 meters.
2. Uncooled FPA detector. Standard interface, integration facilitating. Optional：housing. Lens ( Optional ). Automatical focus imaging according to the objective scene.
3. Detector feature: Uncooled FPA microbolometer. Standard form: a thermal imaging surveillance detector and a monitor. Installation ways: It can be installed in any fixed places, such as: car, boat, the top of house and so on.
Image management:
1. Field of view/min focus distance: 13.7° × 10.3°/1.0m. Spatial resolutions ( IFOV ) : 0.63mrad. NETD: ≤0.08℃@30℃. Frame rate: 50Hz.
2. Focus: Automatic/Manual electronic focus, auto focus according to the object scene. Spectral range: 8 ～ 14μm.
Thermal image adjustment:
1. Control button. Brightness / Gain adjustment: Manual adjustment brightness / gain, automatic adjustment brightness, a manual adjustment gain, automatic adjustment brightness / gain.
2. Automatic adjustment brightness/gain mode: 2 fixed modes, 8 user-defined modes. Image polarity: Hot black/hot white.
Technical data:
Electronic zoom: 2X. Noise reduction. Image enhancement. Calibration: Auto / manual. Crosshair: On / off. Weight : about 0.7Kg.
Power supply: 10 ～15V DC. Power consumption: ≤ 4.5W. Operating temperature: - 20℃～ 50℃. Storage temperature: - 45℃ ～ 65℃. Encapsulation : IP40. Dimension: ≤ 163 mm × 62 mm × 73 mm.
Interface:
1. External DC input. 2. Video output: PAL. 3. PTZ decoder interface,（Optional ) . 4. Protocol: PELCO-D/PELCO-P.
Technical standards:
1. Conform to EN 60950-1:2006+A11:2009 product safety international standard. 2. Conform to EN 61010-1:2001 product safety international standards. 3. Conform to EN61000-6-2:2005 product immunity international standard, conform to international military security standards.

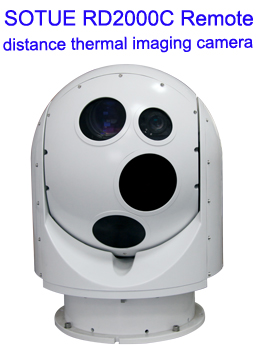

SOTUE RD2000C remote surveillance thermal imaging camera aircraft pod
Suitable for onboard, plane and border monitoring uses and installation.
Remote photoelectric monitoring and imaging system.
Non cooled 384 x 288 pixels / cooled 320 x 256 pixels.
Installation:
System features:
1. Remote infrared detection unit, refrigeration type, non refrigeration optional.
2. High definition fog penetrating telephoto lens with automatic image focusing function.
3. High precision spherical turntable with built-in gyro stabilization function.
4. Optional target tracking function. Optional accessory laser lighting feature.
5. Monitoring Distance: about 2,000 meters.
More details, please contact us.

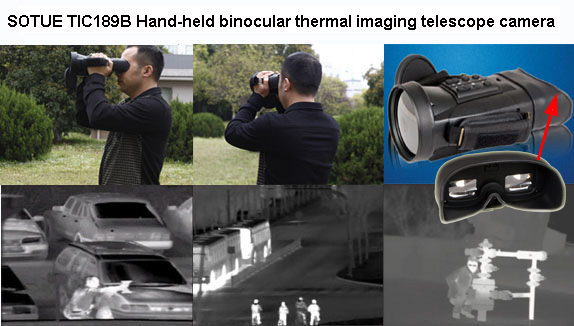

SOTUE TIC189B hand-held binocular thermal imaging telescope camera
Application:
SOTUE model No. TIC189B hand-held binocular thermal imaging military telescope is a hand-held thermal imaging camera with photographing video functions, uses 384 × 288 uncooled focal plane detector with small size, light weight, rugged, easy operation, environmental adaptability, etc., it can complete all-weather surveillance, anti-smuggling and search requirements in a variety of harsh environments, widely used in police system and army.
Feature:
1. Amorphous silicon uncooled FPA detector. Full-time display. Display external monitor and Binocular OLED display.
2. Wide FOV, observation distance is farther, binocular observation is more comfortable and more convenient.
3. Record image function, can photograph images. E-fold focus. Focus: Manual and Automatic. Function: Gain Brightness.
4. OLED binocular display pixel 800 x 600 resolution. Encapsulation: IP67 protection grade, military grade.
5. Manual and Automatic. Enhancement. Electronic zoom: 2X. Photo/Video record. Storage card memory: 6GB, or optional.
6. USB port: Transmit data/images to a computer for storage and analysis. Video out: CCIR and PAL. Remote control: RS422. Optional: can connect to a monitor display.
Video function: built-in record image function, it is also able not to need to connect external video equipments, auto-play function by itself.
Technical data：
1. Display pixel: 800 x 600. Lens: 75 mm / F0.8. Image Storage: Storage Capacity: 1000 image. File format: JPEG and AVI. Sensor spectral range: 8 - 14 µm.
2. Environmental: Operating temperature: -30℃ ～ +50℃. Storage temperature: -40℃ ～ +60℃.
3. Consumption: ≤ 4.5W. Video output: PAL, 75Ω. Weight ≤ 1.52 Kg. Dimension: 263 mm (L) × 128 mm (W) × 113 mm (H).
4. Day and night vision detection distance: 1880 m for people ( 1.8 m (H) x 0.5 m (W) ), 2400 m for car ( 2.3 m (H) x 2.3 m (W) ).
Recognition distance: 830 ~ 860 m for people ( 1.8 m (H) x 0.5 m (W) ), 1150 ~ 1200 m for car ( 2.3 m (H) x 2.3 m (W) ).
5. Rechargeable Lithium Battery: continuous work for 3 hours. Power Supply: DC 10-15V, car cigarette lighter, 110 ~ 220V (±10%).
Technical standards:
1. Conform to EN 60950-1:2006+A11:2009 international safety standard and EN 61010-1:2001 international security standard.
2. Conform to EN61000-6-2:2005 product immunity international standard. Conform to international military security standards.
SOTUE TIA818A military thermal imaging aim telescope
Application:
TIA818A military thermal imaging aim telescope adopts military quality technology design and supports the military deployment and a single soldier backpack deployment, it is widely used in battle, counter-terrorism, police and other fields. It is a multi-purpose monocular Military aiming telescope.
Technical data:
IR Detector: 640 x 512 / 12μm.
Lens: f. 50mm.
Frame Rate: 50Hz.
Human Recognition: up to 1,150 meters.
Vehicle Recognition: up to 1,600 meters.
Image Polarity: White, Black, Red and Color.
Aiming Reticle: 10 types Aiming Reticle.
Reticle Color: Black, White, Red and Green.
Rifle Preset Zero: 3 types Rifle Preset Zero.
Zero Range Preset: 3 types Preset Zeroing Distance.
Digital Zoom: 1.0x ~ 8.0x.
Battery Life: up to 8 hours.
Battery: 1 x 18650 rechargeable Li-ion battery and 1 x CR123 battery, optional: CR123 battery.
(The CR123 battery can operate TIA818A aim telescope for approximately 4 hours.
When TIA818A aim telescope is working in the outside wild, you can carry multiple CR123 batteries for replacement to make the working time of TIA818A aim telescope longer).
Storage: 64 GB (photos and videos).
Quick Start Up: 11 seconds.
Display: 1440 x 1080 pixels.
Diopter: -5D ~ +5D.
Weight: 380g (with battery).
Dimension (approximately): 187 mm x 70 mm x 83 mm.
Operating Temperature: -35℃ ~ 55℃.
Storage Temperature: -55℃ ~ 70℃.
Feature:
Still Image Recording.
Video Recording.
Video Output: Type C.
Interface: Picatinny Rail.
IP Rating: IP67 waterproof.
Wifi transmission function, live image viewing by the mobile phone.
TIA818A thermal imaging aim telescope can be installed on a rifle as an aim telescope for use and also used as a hand-held thermal imaging telescope for a personal use.
Optional: TIA818A telescope can also be combined with a magnifier to form a CLIP-ON device for use as follow.
Used like this as folloing:
Technical standards:
1. Conform to EN 60950-1:2006+A11:2009 international safety standard and EN 61010-1:2001international security standard.
2. Conform to EN61000-6-2:2005 product immunity international standard.
3. Conform to USA MIL-STD standard. Have European CE and EMC international security standard certificates.
4. Have ISO 9001:2015 international quality standard management system certificate.

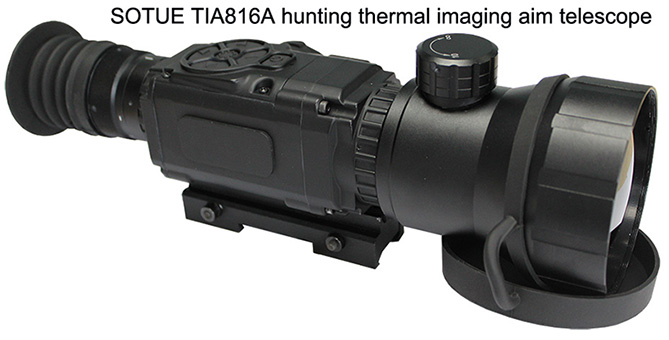

SOTUE TIA816A hunting thermal imaging aim telescope
Application:
SOTUE model No. TIA816A thermal imaging aim telescope which is installed on a gun such as a rifle is a long-wave infrared and magnified dedicated telescope for day and night work, it is an advanced and very helpful equipment for hunting.
TIA816A telescope can pass through total darkness, haze, dust, fog and smoke to detect targets, and help to see through various animal camouflages. it installs an international stnadard 1913 picatinny rail under it, thus it can fit to install on a gun for hunting, it can help to shoot the animals and other targets.
Features:
3.5X optical lens. E-zoom 7-14X magnification. Light weight and compact design. Waterproof. Dust-proof and shockproof. 1913 Picatinny installation.
Technical Details:
Type: Uncooled. Sensor: 640 x 480 px. Image Size (output resolution): 800 x 600 px. Display: Color OLED. Field of View: 8.3 x 6.2. Optical Magnification: 3.5X. Distance of the human detection:1800 m. Net weight: 1.06kg.
Reticle Color: White & Black. Dimension: 308 mm x 80 mm x 98 mm. Sharpness adjustment: Automatic. Lens system: 75 mm. Polarity control White hot / Black hot / Multiple Color Modes.
Battery type: CR123 battery, battery (rechargeable or dry battery): 7 ~ 8 hours work. Mounting bracket: Picatinny rail.
Technical standards:
1. Conform to EN 60950-1:2006+A11:2009 international safety standard and EN 61010-1:2001international security standard.
2. Conform to EN61000-6-2:2005 product immunity international standard. Conform to international military security standards. conform to MIL-STD-962 practice and test method standard.

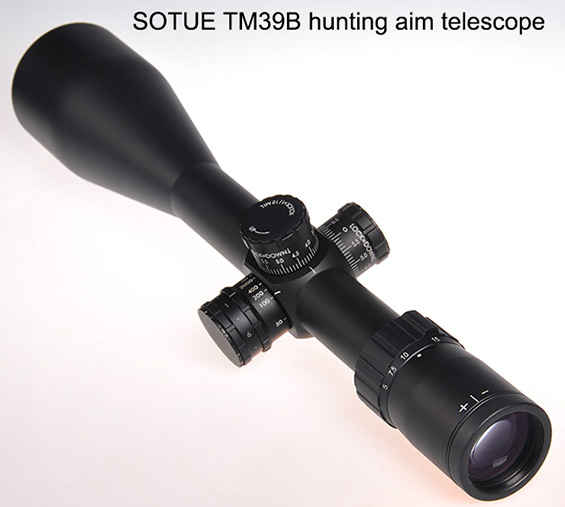

SOTUE TM39B hunting aim telescope
Application:
SOTUE model No. TM39B hunting aim telescope which can be installed on a gun such as a rifle is a magnified dedicated telescope, it is an advanced and very helpful equipment for hunting.
TM39B telescope can install an international stnadard rail under it, thus it can fit to install on a gun for hunting, it can help to shoot the animals and other targets.
Features:
Light weight and compact design. Waterproof. Fogproof. Shockproof. Ocular Focus. Side Focus. Parallax Adjustment.
Technical data:
Magnification Type: Fixed. Magnification (Variable): 5X ~ 25X. Objective Lens Diameter: 58 mm. Ocular Lens Diameter: 36 mm. Body Tube Diameter: 30 mm. Length: 382 mm.
Parallax Adjustment Range: 50yds. Click Value: 0.125 MOA. Reticle Type: Etched. Eye Relief: 101.2 mm. Exit Pupil: 10-2.2 mm. Field of View: 19.5FT ~ 3.9FT. Ocular Outside Diameter: 43.3 mm.
Technical standards:
1. Conform to EN 60950-1:2006+A11:2009 international safety standard and EN 61010-1:2001 international security standard.
2. Conform to EN61000-6-2:2005 product immunity international standard.
|
