Can provide OEM & ODM designs of hand-held metal detector, underground metal detector & multi-zone ( 6-zone, 8-zone, 18-zone, 24-zone & 33-zone) walk-through metal detector. 可提供步行通过式金属探测器门的通道宽度尺寸选择: 65厘米, 70厘米, 80厘米, 90厘米, 100厘米, 130厘米, 150厘米, 160厘米和200厘米; 多区域(6区, 8区, 18区, 24区和33区)报警步行通过式金属探测器门。

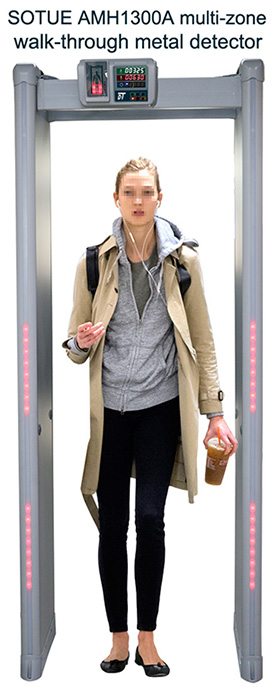

SOTUE AMH1300A high security multi-zone simultaneous alarm walk-through metal detector
SOTUE AMH1300A 33-zone walk-through metal detector is an advanced high security multi-zone simultaneous alarm walk-through metal detector in the world, when people pass through it, it can detect any small mass metal, by manual adjust its sensitivity for high sensitivity or low sensitivity to detect a small metal or a big metal. It is used widely in loss prevention and security inspection, used widely in airport, court, prison, customhouse, big bus stations, train stations, factory, exhibition site, gym place, amusement place, and so on. It inspects persons, hand-held parcels and luggages, and can locate a small metal, IED-device, weapons, ammunitions, parts of weapons, bombs, etc..
1. Complete security detection, multi-zone alarm displays, high discrimination, high immunity to external interferences, high detection speed, high reliability with double alert. 33 partition alarm zones from head to toe are displayed in one or two sides of this door and on its top operation panel. Its Security level: overall gate sensitivity adjustment for 0~99 grades, each zone sensitivity can also be individually adjusted for 0 ~ 399 grades. Highly visible double alarm displays: Provides the location of weapons in transit. it displays an accurate detection location: LED light-emitting lights display the location of metal objects. Through the control panel to operate it, its password-protected setting can be changed. This detector have 72 use occasion programs for your options to convenient uses for you.
2. Automatic calculation passer number & alarm number function, LED display digits. Induction to all metals, have an intelligentized recognition processing functions. Automatic checking and recovery function. When carrying any small mass metal passes through it and it detects this metal, its alarm will be given out, you can get an accurate warning location. Objective location alarm lights are displayed in one or two sides of this door and on its top operation panel. Adjustment sensitivity by hand.
Power supply: 110V ~ 220V (±10%), 50 / 60Hz. Power: 35W. Weight: 75 ~ 80kgs. Automatical adjustment.
Working environment: -20℃ ~ 65℃. 33 detection zones.
Overall exterior gate dimension: 2230 mm (H) * 810 mm (W) * 580 mm (depth).
Dimension of gate passageway interior: 2000 mm (H) * 700 mm (W) * 580 mm (depth).
Overall exterior gate dimension: 2230 mm (H) * 860 mm (W) * 580 mm (depth).
Dimension of gate passageway interior: 2000 mm (H) * 750 mm (W) * 580 mm (depth).
33 detection zones.
Optional 18 detection zones. Optional: communication port RS232 or RS485.
1. Conform to EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 product safety international standard. Conform to EN 55011:2009+A1:2010 and EN 61326-1:2013 product safety international standards. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards. 2. Conform to EN 61000-6-1:2007 product immunity international standard and radiation conforms to EN 61000-6-3:2007 +A1:2011+AC:2012 product emission international standard. Be harmless to pregnant women and magnetic recording materials. 3. Conform to existing walk-through metal detector GB15210-2003 standard. Conform to U.S.A. FAA 3-gun testing standards and NILECJ-0601-00 safety standards. 4. European CE & EMC international security standard certificates, conform to ECAC international Security standard. Conform to U.S.A. Transportation Security Administration (TSA) standard.
